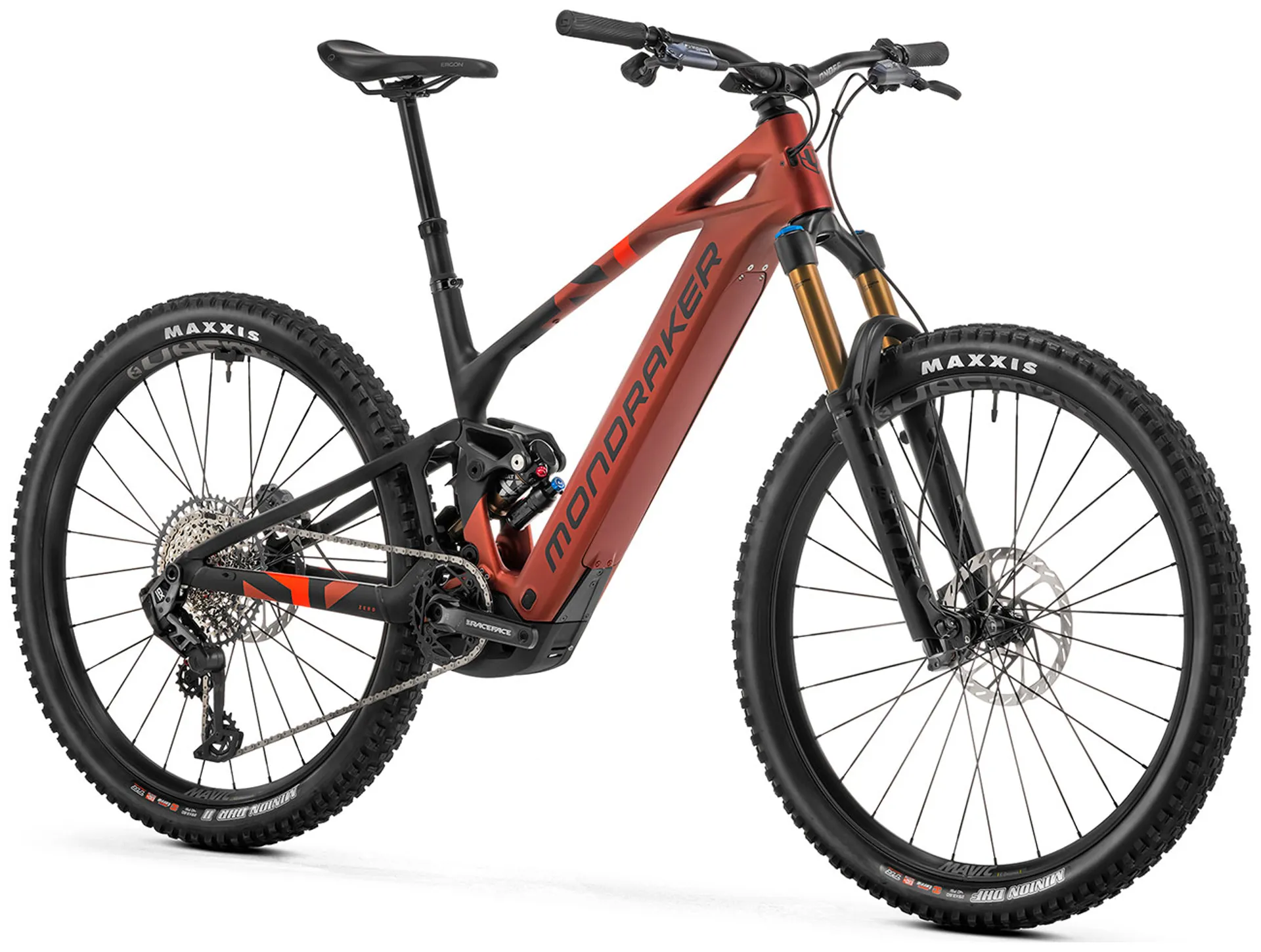

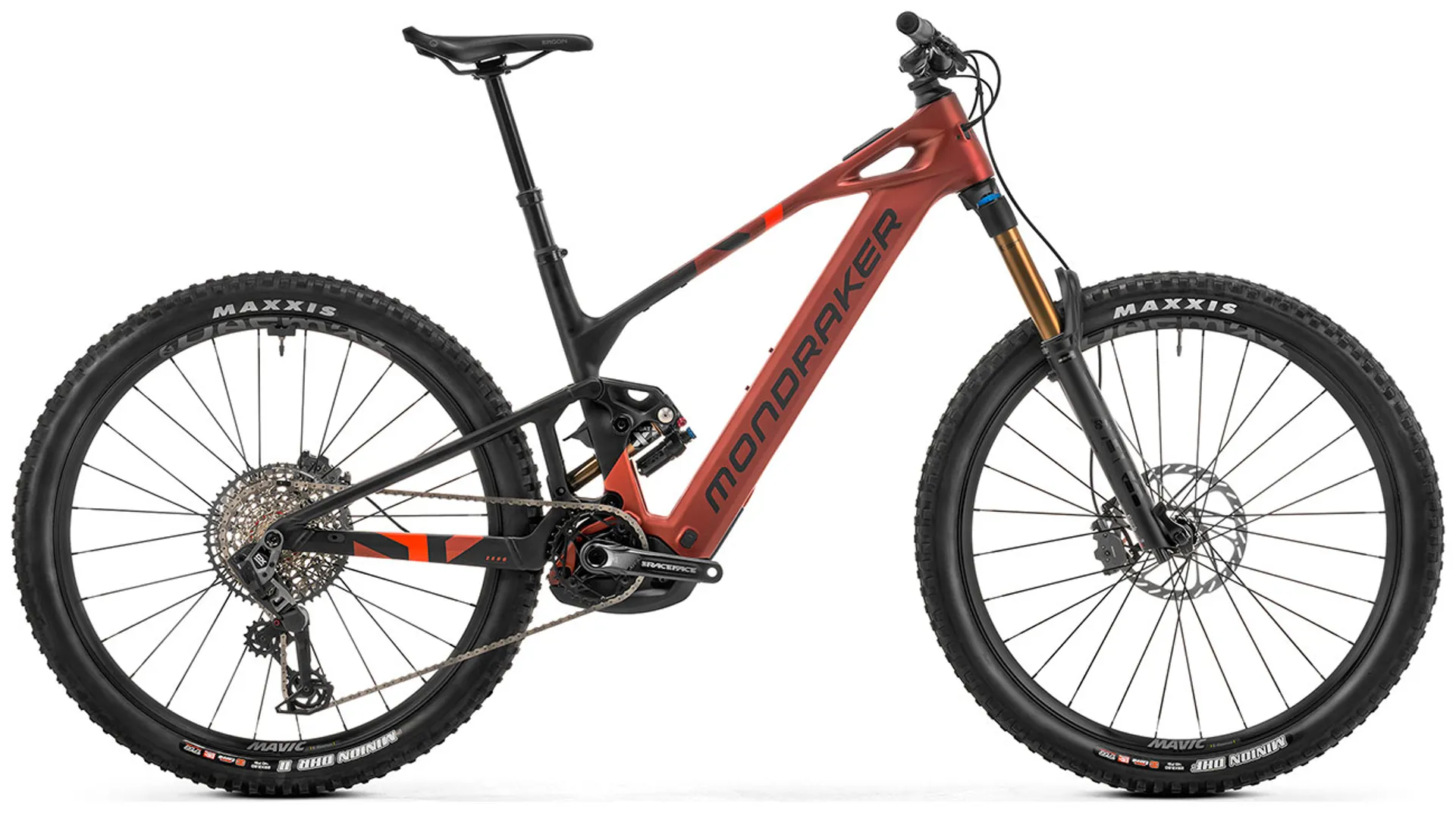

Mondraker Crafty Carbon RR Earth Red XL 2025

Season:2021

Brand:Mondraker

Code:010.25350

Introducing the next generation ofCrafty Carbon. The latest iteration of our most successful e-Bike bar none. Totally redesigned with nothing left untouched, yet clearly, unmistakably a Crafty and still with all the character that’s defined the model since the day it was launched.

The ultimate enduro bike in our full power mountain bike category, it comes with 29” wheels and 160/150mm of travel. TheCrafty Carbonrange is available in 5 different builds, all with a carbon fibre frame guaranteeing versatility and endurance on the harshest of terrains. With its totally redesigned frame and aesthetics, the newCrafty Carbonrange also incorporates the very latest edition of the Zero Suspension System to give you more grip and control than ever before.

Crafty Carbon RRtakes things up a notch when it comes to components, being the first bike in the range to offer SRAM’s wireless GX AXS drivetrain and Fox suspension front and rear with their patented Kashima coating. It also comes with the much talked about SRAM Maven brakes and Bosch’s new 800Wh battery. ONOFF components have you covered for bars, stem and the Pija dropper post in different lengths dependant on frame size.

Technical Information

Components

Technical specs

  • frame

    Frame

    Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

    sizes

    Sizes

    S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

  • rear shock

    Rear shock

    Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

    shock settings

    Shock settings

    CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer

  • fork

    Fork

    Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

    headset

    Headset

    Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

  • stem

    Stem

    Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

    handlebar

    Handlebar

    Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

  • grips

    Grips

    Onoff Forest, CNC lock-on, 135mm

    seatpost

    Seatpost

    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

  • saddle

    Saddle

    Ergon SM-10

    front brake

    Front brake

    Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

  • rear brake

    Rear brake

    Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    brake lever

    Brake lever

    Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust

  • rims

    Rims

    Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

    spokes

    Spokes

    Mavic J-bend double butted, contactless lacing

  • front hub

    Front hub

    Mavic, Boost 15x110mm, IS 6 bolts

    rear hub

    Rear hub

    Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub

  • front tire

    Front tire

    Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

    rear tire

    Rear tire

    Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

  • crankset

    Crankset

    Race Face Aeffect-R ebike, 160mm

    rings

    Rings

    Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55

  • chain

    Chain

    Sram GX Eagle T-Type, 12s, Powerlock

    rear derrailleur

    Rear derrailleur

    Sram GX Eagle AXS, T-Type, 12s

  • shift levers

    Shift levers

    Sram Eagle AXS Pod MMX, 12s

    casette

    Casette

    Sram XS-1275, 10-52T, T-Type, 12s

  • weight

    Weight

    24,4 kg

    display

    Display

    Purion 400 / Bosch Mini Remote / Bosch System Controller

  • motor

    Motor

    New Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

    battery

    Battery

    Bosch Powertube 800Wh

Sizing Information
Frame size
S [Std/Low]M [Std/Low]M/L [Std/Low]L [Std/Low]XL [Std/Low]
ASeattube length380 mm410 mm435 mm460 mm490 mm
BToptube length581 mm/582 mm596 mm/597 mm618 mm/619 mm640 mm/641 mm662 mm/663 mm
CBottom bracket drop-25 mm/-30 mm-25 mm/-30 mm-25 mm/-30 mm-25 mm/-30 mm-25 mm/-30 mm
DBottom bracket height350 mm/345 mm350 mm/345 mm350 mm/345 mm350 mm/345 mm350 mm/345 mm
EChainstay length455 mm/456 mm455 mm/456 mm455 mm/456 mm465 mm/466 mm465 mm/466 mm
FSeat tube angle73°/72.65°73°/72.65°73°/72.65°73°/72.65°73°/72.65°
GEffective seattube angle77.95°/77.6°77.95°/77.6°77.95°/77.6°77.95°/77.6°77.95°/77.6°
HHeadtube angle64.5°/64.15°64.5°/64.15°64.5°/64.15°64.5°/64.15°64.5°/64.15°
IFork Offset44 mm44 mm44 mm/44 mm44 mm44 mm/44 mm
JWheelbase1240 mm/1241 mm1255 mm/1256 mm1280 mm/1281 mm1314 mm/1315 mm1338 mm/1339 mm
KHeadtube length120 mm120 mm130 mm140 mm150 mm
LReach445 mm/441 mm460 mm/456 mm480 mm/476 mm500 mm/496 mm520 mm/516 mm
MStack638 mm/641 mm638 mm/641 mm647 mm/650 mm656 mm/659 mm665 mm/668 mm
Professional Opinion
Quite possibly one of the best feeling all round electric full suspension bikes ever!

We have 1 left in size XL only ( best suited to people 6' plus tall )
